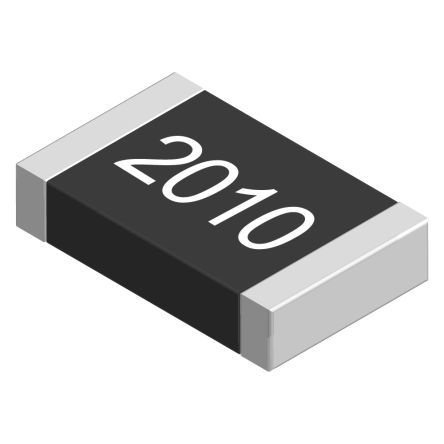

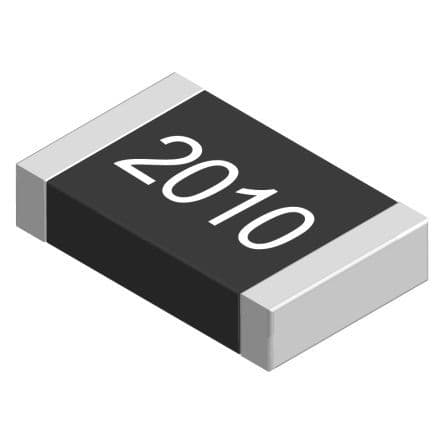

Surface mount thick film resistor, 0.75W power rating, 100 ohm resistance with 1% tolerance. Features a 400V voltage rating and a temperature coefficient of 100ppm/°C. Constructed with tin plating and a 2010 case code, this component operates from -55°C to 155°C. Automotive AEC-Q200 qualified and RoHS compliant.
Package2010
Resistance100R
Voltage Rating400V
Quick Jump:
Technical Specifications
Vishay CRCW2010100RFKEF technical specifications.
General
Case Code (Imperial)
2010
Case Code (Metric)
5025
Package/Case
2010
Construction
Rectangular
Contact Plating
Tin
Depth
2.5mm
Features
Automotive AEC-Q200
Height
0.6mm
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
155°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
750mW
Number of Terminations
2
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Resistance
100R
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CRCW
Size Code
2010
Technology
THICK FILM
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
400V
DC Rated Voltage
400V
Weight
0.001372oz
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Vishay CRCW2010100RFKEF Datasheet
Download the complete datasheet for Vishay CRCW2010100RFKEF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
