Surface mount thick film chip resistor with 1kΩ resistance and 1% tolerance. Features 0.75W power dissipation, 400V voltage rating, and a temperature coefficient of 100ppm/°C. Constructed with metal glaze technology in a 2010 case code (5mm x 2.5mm) and tin plating. Operates from -55°C to 155°C and is AEC-Q200 automotive qualified, RoHS, and halogen-free compliant.
Package2010
Resistance1kR
Voltage Rating400V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Vishay CRCW20101K00FKEF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Vishay CRCW20101K00FKEF technical specifications.
General
| Case Code (Imperial) | 2010 |
| Case Code (Metric) | 5025 |
| Package/Case | 2010 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 2.5mm |
| Features | Automotive AEC-Q200 |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 155°C |
| Max Power Dissipation | 750mW |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Number of Terminations | 2 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Resistance | 1kR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRCW |
| Size Code | 2010 |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
| Weight | 0.000899oz |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW20101K00FKEF Datasheet
Download the complete datasheet for Vishay CRCW20101K00FKEF to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

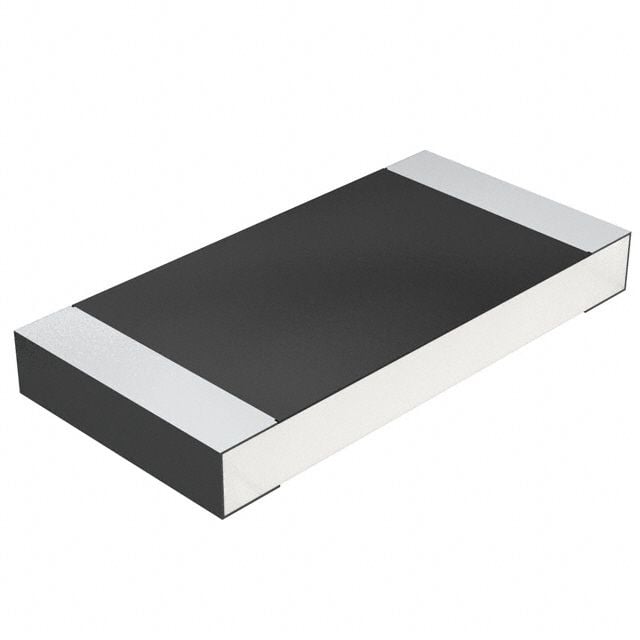

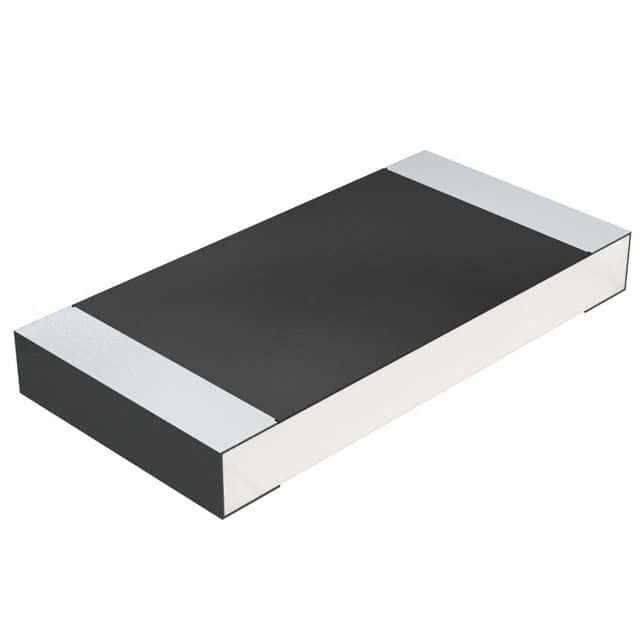

Product Images
