Technical Specifications
Vishay CRCW2010470KFKEF technical specifications.
General
| Case Code (Imperial) | 2010 |
| Case Code (Metric) | 5025 |
| Package/Case | 2010 |
| Features | Automotive AEC-Q200 |
| Height | 0.028inch |
| Lead Free | Lead Free |
| Length | 0.197inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 750mW |
| Number of Terminations | 2 |
| Packaging | Cut Tape |
| Ratings | AEC-Q200 |
| Resistance | 470kR |
| RoHS Compliant | Yes |
| Series | CRCW |
| Tolerance | 1% |
| DC Rated Voltage | 400V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW2010470KFKEF Datasheet
Download the complete datasheet for Vishay CRCW2010470KFKEF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

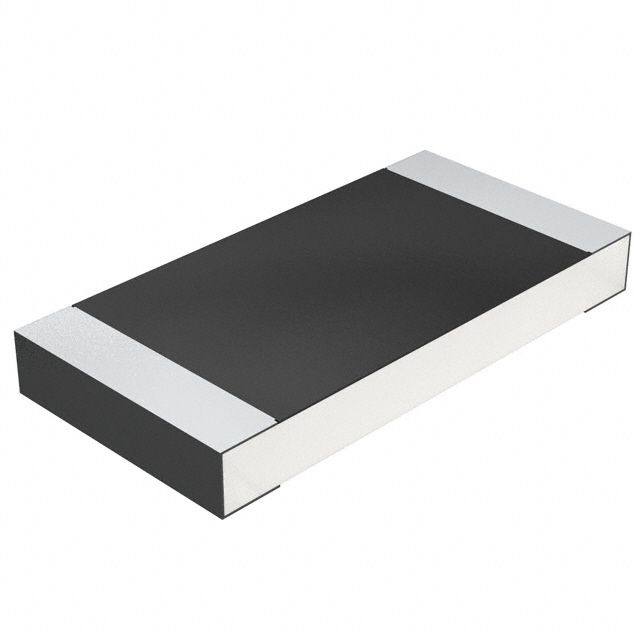

Product Images
