The DF06M-E3 is a bridge rectifier with a maximum operating temperature of 150°C and a maximum repetitive reverse voltage of 600V. It has a maximum forward surge current of 50A and a maximum reverse current of 5uA. The device is available in a through-hole package type R-PDIP-T4 with dimensions of 3.3mm height, 8.51mm length, and 6.5mm width. The DF06M-E3 is RoHS compliant and suitable for use in a variety of applications.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay DF06M-E3 technical specifications.
General
| Current Rating | 1A |
| Forward Current | 1A |
| Height | 3.3mm |
| Length | 8.51mm |
| Max Forward Surge Current (Ifsm) | 50A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 5uA |
| Mount | Through Hole |
| RoHS Compliant | Yes |
| Width | 6.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay DF06M-E3 Datasheet
Download the complete datasheet for Vishay DF06M-E3 to view detailed technical specifications.
No datasheet is available for this part.

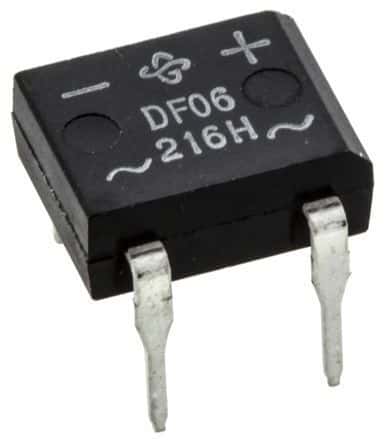

Product Images
