Dual SPDT analog switch, surface mountable in a 16-pin SOIC package. Features 35 Ohm drain-to-source resistance and 55 Ohm on-state resistance. Operates with dual supply voltages from 7V to 22V, and single or dual supply types up to 36V. Offers 2 circuits with 4 inputs and 4 outputs, supporting a maximum power dissipation of 600mW. RoHS compliant with a maximum operating temperature of 85°C.
PackageSOIC
Current10nA
MountingSurface Mount
Power600mW
Quick Jump:
Technical Specifications
Vishay DG403DY-T1-E3 technical specifications.
General
| Package/Case | SOIC |
| Drain to Source Resistance | 35R |
| Dual Supply Voltage | 15V |
| Height | 1.55mm |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Dual Supply Voltage | 22V |
| Min Dual Supply Voltage | 7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 600mW |
| Max Supply Current | 1uA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 13V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| On-State Resistance | 55R |
| Operating Supply Current | 5uA |
| Operating Supply Voltage | 15V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 600mW |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 10nA |
| Supply Type | Single, Dual |
| Throw Configuration | SPDT |
| Weight | 0.023492oz |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay DG403DY-T1-E3 Datasheet
Download the complete datasheet for Vishay DG403DY-T1-E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

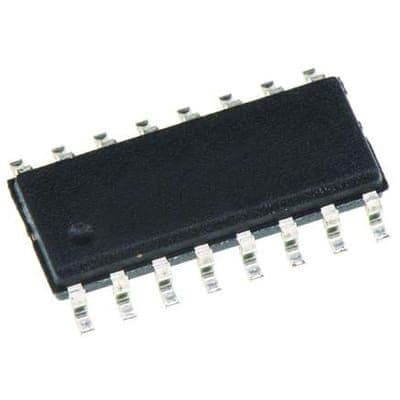

Product Images
