Quad SPST analog switch, surface mountable in a 16-pin SOIC package. Features four independent SPST switches with a maximum operating temperature of 85°C and a minimum of -40°C. Supports dual supply voltages from 7V to 15V, with a maximum dual supply voltage of 22V. Offers a maximum supply voltage of 36V and a typical supply current of 100pA. Power dissipation is 600mW.
PackageSOIC
Current100pA
MountingSurface Mount
Power600mW
Quick Jump:
Technical Specifications
Vishay DG412DY-E3 technical specifications.
General
Package/Case
SOIC
Dual Supply Voltage
15V
Height
1.55mm
Lead Free
Lead Free
Length
10mm
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
600mW
Max Supply Current
1uA
Max Supply Voltage
36V
Min Supply Voltage
13V
Mount
Surface Mount
Number of Channels
4
Number of Circuits
4
Number of Inputs
4
Number of Outputs
4
Operating Supply Voltage
15V
Package Quantity
500
Packaging
Rail/Tube
Power Dissipation
600mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Supply Current
100pA
Supply Type
Single, Dual
Throw Configuration
SPST
Weight
0.023492oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Vishay DG412DY-E3 Datasheet
Download the complete datasheet for Vishay DG412DY-E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

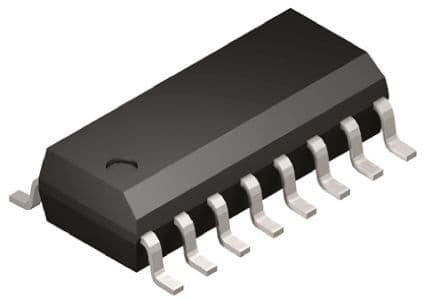

Product Images
