Single Pole Double Throw (SPDT) analog switch, surface mountable in an 8-pin SOIC package. Features low on-state resistance of 4.5 Ohms and drain-to-source resistance of 40 Ohms. Operates with dual supply voltages from +/-7V to +/-15V, with a maximum dual supply voltage of +/-22V. Supports single or dual supply types up to 36V maximum. RoHS compliant with a maximum power dissipation of 400mW.
PackageSOIC
Current1nA
MountingSurface Mount
Power400mW
Quick Jump:
Technical Specifications
Vishay DG419DY-T1-E3 technical specifications.
General
Package/Case
SOIC
Drain to Source Resistance
40R
Dual Supply Voltage
15V
Height
1.55mm
Lead Free
Lead Free
Length
5mm
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
400mW
Max Supply Current
1uA
Max Supply Voltage
36V
Min Supply Voltage
13V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Inputs
1
Number of Outputs
2
On-State Resistance
4.5R
Operating Supply Current
2uA
Operating Supply Voltage
15V
Package Quantity
2500
Packaging
Tape and Reel
Power Dissipation
400mW
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Supply Current
1nA
Supply Type
Single, Dual
Throw Configuration
SPST, SPDT
Weight
0.019048oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Vishay DG419DY-T1-E3 Datasheet
Download the complete datasheet for Vishay DG419DY-T1-E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

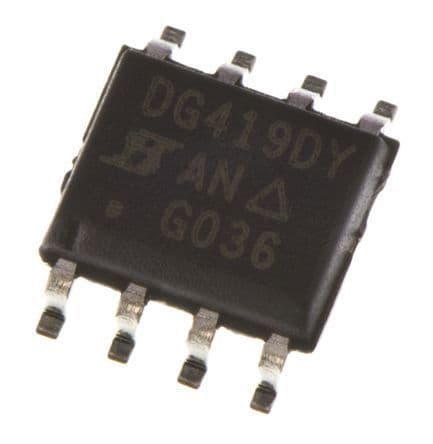

Product Images
