Quad SPST analog switch IC featuring 4 channels and 4 circuits. Offers a low drain-to-source resistance of 85 Ohms and supports dual supply voltages from 7V to 22V, with a maximum supply voltage of 36V. This through-hole mounted component operates across a temperature range of -40°C to 85°C and has a power dissipation of 450mW. The device is RoHS compliant and lead-free, with a turn-on delay of 450ns and turn-off delay of 210ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay DG445DJ-E3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay DG445DJ-E3 technical specifications.

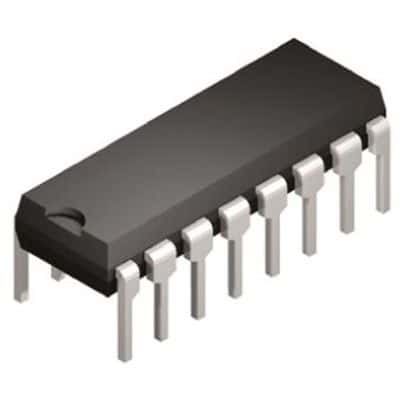

| Package/Case | PDIP |
| Drain to Source Resistance | 85R |
| Dual Supply Voltage | 20V |
| Height | 3.81mm |
| High Level Output Current | 30mA |
| Lead Free | Lead Free |
| Length | 21.33mm |
| Max Dual Supply Voltage | 22V |
| Min Dual Supply Voltage | 7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 450mW |
| Max Supply Current | 1uA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 13V |
| Mount | Through Hole |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| Operating Supply Current | 1nA |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Power Dissipation | 450mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 1uA |
| Supply Type | Single, Dual |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 210ns |
| Turn-On Delay Time | 450ns |
| Weight | 0.057419oz |
| Width | 7.11mm |
| RoHS | Compliant |
