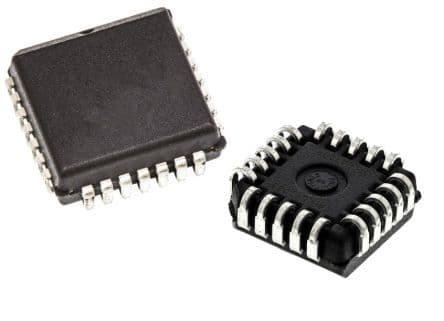

Dual 8-channel analog multiplexer IC featuring a 217MHz bandwidth and 450 Ohm on-state resistance. Operates with dual supply voltages from 5V to 20V, or single supply from 12V to 44V. Surface mountable in a PLCC package, this component offers a maximum operating temperature of 125°C. RoHS compliant with a maximum power dissipation of 1.693W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay DG507BEN-T1-GE3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay DG507BEN-T1-GE3 technical specifications.
| -3db Bandwidth | 217MHz |
| Bandwidth | 217MHz |
| Package/Case | PLCC |
| Logic Function | Multiplexer |
| Max Dual Supply Voltage | 20V |
| Min Dual Supply Voltage | 5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.693W |
| Max Supply Current | 100uA |
| Max Supply Voltage | 44V |
| Min Supply Voltage | 12V |
| Mount | Surface Mount |
| Number of Channels | 8 |
| Number of Circuits | 2 |
| On-State Resistance | 450R |
| Operating Supply Current | 100uA |
| Operating Supply Voltage | 15V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 5uA |
| Supply Type | Single, Dual |
| RoHS | Compliant |
