PackageModule
Capacitance300pF
MountingScrew
Quick Jump:
Technical Specifications
Vishay GBPC2501-E4/51 technical specifications.
General
Average Rectified Current
25A
Capacitance
300pF
Package/Case
Module
Forward Current
25A
Height
7.62mm
Lead Free
Contains Lead
Length
28.8mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
100V
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Max Surge Current
300A
Mount
Screw
Number of Elements
1
Output Current
25A
Package Quantity
100
Packaging
Bulk
Peak Non-Repetitive Surge Current
300A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Width
28.8mm
Compliance
RoHS
Compliant
Datasheet
Vishay GBPC2501-E4/51 Datasheet
Download the complete datasheet for Vishay GBPC2501-E4/51 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

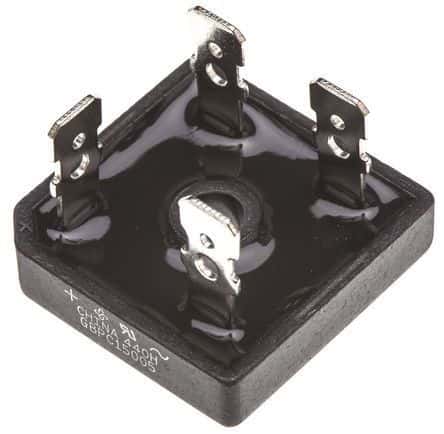

Product Images
