High-performance switching diode with 1A average rectified and forward current, featuring a 1.5kV maximum repetitive reverse voltage and 1.5kV DC reverse voltage. This through-hole component, housed in a DO-204AL package, offers a 25A maximum surge current capability and operates across a wide temperature range from -65°C to 150°C. With a 3µs reverse recovery time and 5µA maximum reverse current, it is supplied in tape and reel packaging with 5500 units per reel.
PackageDO-204AL
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay GP10W-E3/54 technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | DO-204AL |
| Forward Current | 1A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.5kV |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 1.5kV |
| Max Surge Current | 25A |
| Mount | Through Hole |
| Package Quantity | 5500 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 25A |
| Radiation Hardening | No |
| Reverse Recovery Time | 3us |
| Reverse Voltage | 1.5kV |
| RoHS Compliant | Yes |
| Series | SUPERECTIFIER® |
Compliance
| RoHS | Compliant |
Datasheet
Vishay GP10W-E3/54 Datasheet
Download the complete datasheet for Vishay GP10W-E3/54 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

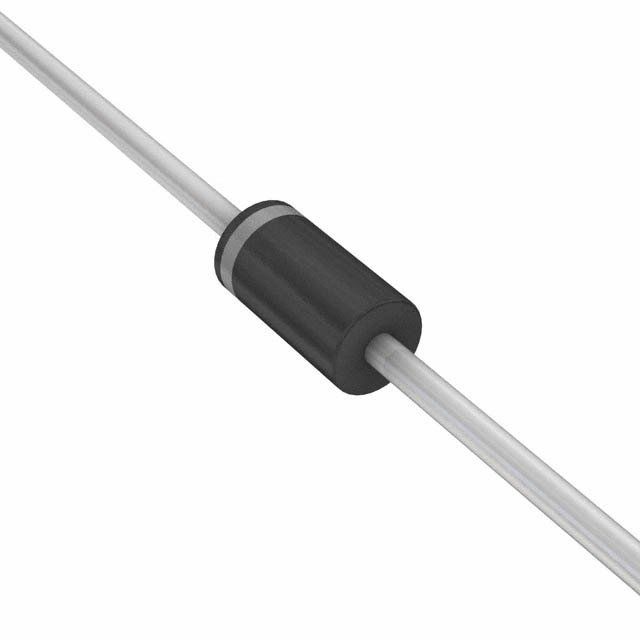

Product Images
