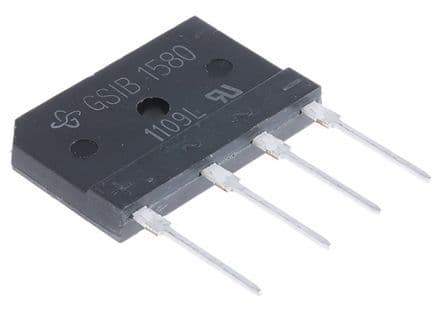

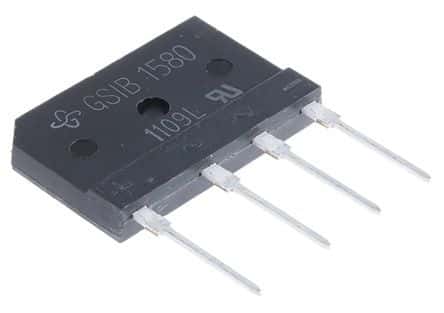

Bridge Rectifier Diode with 15A average rectified current and 800V maximum repetitive reverse voltage. Features a 3.5A forward current, 300A maximum surge current, and operates from -55°C to 150°C. This silicon diode is housed in a GSIB-5S plastic package with through-hole termination, measuring 20mm in height, 30mm in length, and 4.6mm in width. RoHS compliant and lead-free.
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay GSIB1580-E3/45 technical specifications.
General
| Average Rectified Current | 15A |
| Package/Case | SIP |
| Forward Current | 3.5A |
| Height | 20mm |
| Lead Free | Lead Free |
| Length | 30mm |
| Max Forward Surge Current (Ifsm) | 300A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 800V |
| Max Reverse Current | 10uA |
| Max Surge Current | 300A |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 300A |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage (DC) | 560V |
| RoHS Compliant | Yes |
| Termination | Through Hole |
| Weight | 0.246918oz |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay GSIB1580-E3/45 Datasheet
Download the complete datasheet for Vishay GSIB1580-E3/45 to view detailed technical specifications.
