Surface mount shielded wirewound power inductor with 2.2µH inductance and 20% tolerance. Features a 1616 case size, powdered iron core, and a rated current of 2.85A. Offers a low DC resistance of 90mΩ and a saturation current of 6A. Operates across a wide temperature range from -55°C to 125°C. Packaged in tape and reel for automated assembly.
Package1616
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications

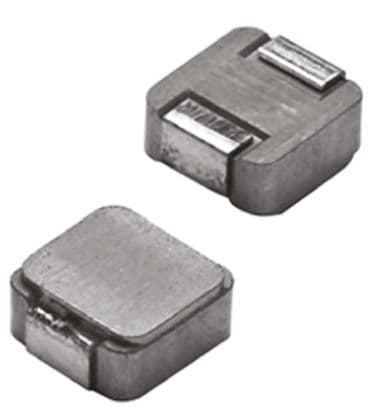

Vishay IHLP1616BZER2R2M01 technical specifications.
General
| Case Code (Imperial) | 1616 |
| Case Code (Metric) | 4040 |
| Package/Case | 1616 |
| Core Material | Metal, Composite |
| DC Current | 2.85A |
| DC Resistance (DCR) | 90mR |
| Depth | 4.31mm |
| Height | 2mm |
| Inductance | 2.2uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 4.45mm |
| Max DC Current | 6A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 2.85A |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 2.85A |
| RoHS Compliant | Yes |
| Saturation Current | 6A |
| Self Resonant Frequency | 39MHz |
| Series | IHLP-1616BZ-01 |
| Series Resistance | 90mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 4.06mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay IHLP1616BZER2R2M01 Datasheet
Download the complete datasheet for Vishay IHLP1616BZER2R2M01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
