General purpose fixed inductor with 2.2 µH inductance and 20% tolerance. Features a composite metal/ferrite core, shielded construction, and surface mount termination in a 2020 package. Rated for 5A RMS current and 5.5A saturation current, with a DC resistance of 37.7 mΩ. Operates across a wide temperature range from -55°C to 125°C. This component is halogen-free and RoHS compliant.
Package2020
Current Rating5A
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
Vishay IHLP2020BZER2R2M11 technical specifications.
General
| Package/Case | 2020 |
| Core Material | Metal, Composite, Ferrite |
| Current Rating | 5A |
| DC Resistance (DCR) | 37.7mR |
| Depth | 5.43mm |
| Height | 2mm |
| Height - Seated (Max) | 0.079inch |
| Inductance | 2.2uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 5.49mm |
| Max DC Current | 5.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 5A |
| RoHS Compliant | Yes |
| Saturation Current | 5.5A |
| Self Resonant Frequency | 41MHz |
| Series | IHLP-2020BZ-11 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.204inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay IHLP2020BZER2R2M11 Datasheet
Download the complete datasheet for Vishay IHLP2020BZER2R2M11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

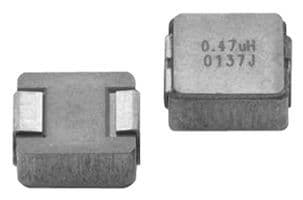

Product Images
