Surface mount shielded wirewound power inductor with 10µH inductance and 20% tolerance. Features a 2020 package size, powdered iron core, and a maximum DC current of 4A. Offers a DC resistance (DCR) of 164mΩ at a test frequency of 100kHz, with an RMS current rating of 2.5A. Operates across a temperature range of -55°C to 125°C and is RoHS compliant.
Package2020
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
Vishay IHLP2020CZER100M01 technical specifications.
General
| Package/Case | 2020 |
| Core Material | Metal, Composite |
| DC Resistance (DCR) | 164mR |
| Depth | 5.43mm |
| Height | 3mm |
| Inductance | 10uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 5.49mm |
| Max DC Current | 4A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 2.5A |
| RoHS Compliant | Yes |
| Saturation Current | 4A |
| Self Resonant Frequency | 5MHz |
| Series | IHLP-2020CZ-01 |
| Series Resistance | 164mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.007055oz |
| Width | 5.18mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay IHLP2020CZER100M01 Datasheet
Download the complete datasheet for Vishay IHLP2020CZER100M01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

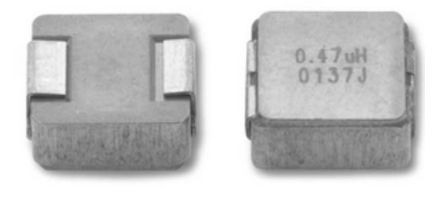

Product Images
