Surface mount fixed inductor with 5.6µH inductance and 20% tolerance, designed for power applications. Features a shielded, wirewound construction with a powdered iron core, rated for 4.25A maximum DC current and 3.5A saturation current. Operates across a wide temperature range of -55°C to 125°C, with a low DC resistance of 70.6mΩ at 100kHz. Housed in a compact 2020 package, this component is supplied on tape and reel for automated assembly.
Package2020
Current Rating4.25A
MountingSurface Mount
Inductance5.6uH
Quick Jump:
Technical Specifications
Vishay IHLP2020CZER5R6M11 technical specifications.
General
| Package/Case | 2020 |
| Core Material | Ferrite, Metal, Composite |
| Current Rating | 4.25A |
| DC Resistance (DCR) | 70.6mR |
| Depth | 5.43mm |
| Height | 3mm |
| Inductance | 5.6uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 5.49mm |
| Max DC Current | 4.25A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 4.25A |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 4.25A |
| Saturation Current | 3.5A |
| Self Resonant Frequency | 23MHz |
| Series | IHLP-2020CZ-11 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 5.18mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Vishay IHLP2020CZER5R6M11 Datasheet
Download the complete datasheet for Vishay IHLP2020CZER5R6M11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

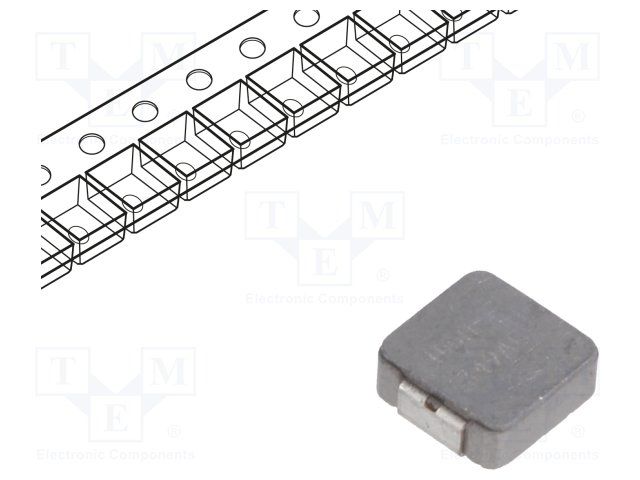

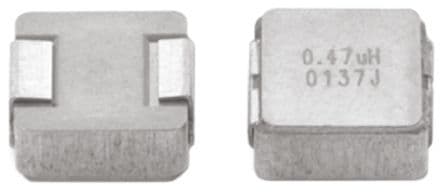

Product Images
