Surface mount fixed inductor featuring a shielded, wirewound construction with a powdered iron core. Offers 470nH inductance with a 20% tolerance, tested at 100kHz. Rated for a maximum DC current of 16A, with a continuous current rating of 12.2A and a low DC resistance of 7.04mR. Operates across a wide temperature range from -55°C to 125°C, housed in a compact 2020 package.
Package2020
Current Rating12.2A
MountingSurface Mount
Inductance470nH
Quick Jump:
Technical Specifications
Vishay IHLP2020CZERR47M01 technical specifications.
General
| Package/Case | 2020 |
| Core Material | Metal, Composite |
| Current Rating | 12.2A |
| DC Resistance (DCR) | 7.04mR |
| Depth | 5.43mm |
| Height | 3mm |
| Height - Seated (Max) | 0.118inch |
| Inductance | 470nH |
| Lead Free | Lead Free |
| Length | 5.49mm |
| Max DC Current | 16A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 12.2A |
| RoHS Compliant | Yes |
| Saturation Current | 16A |
| Self Resonant Frequency | 5MHz |
| Series | IHLP-2020CZ-01 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.204inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay IHLP2020CZERR47M01 Datasheet
Download the complete datasheet for Vishay IHLP2020CZERR47M01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

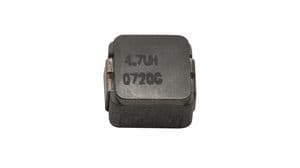

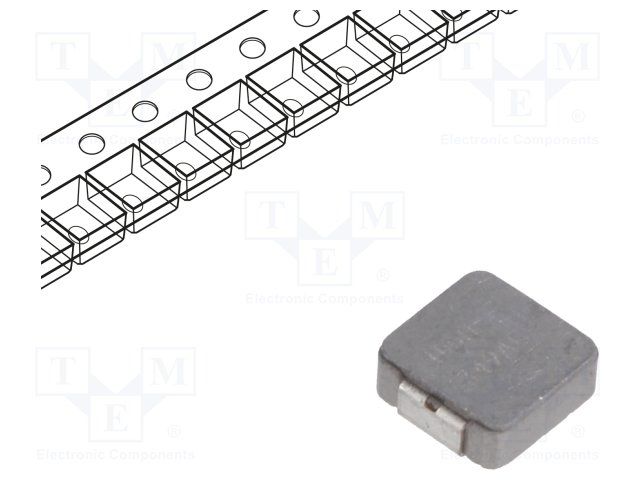

Product Images
