General purpose fixed inductor with 3.3 µH inductance and 20% tolerance. Features a composite metal/ferrite core and shielded construction. Rated for 5A RMS current and 13A saturation current. Operates from -55°C to 125°C. Surface mountable in a 2525 (6363 metric) case. RoHS compliant and lead-free.
Package2525
Current Rating5A
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
Vishay IHLP2525BDER3R3M01 technical specifications.
General
Case Code (Imperial)
2525
Case Code (Metric)
6363
Package/Case
2525
Core Material
Metal, Composite, Ferrite
Current Rating
5A
DC Resistance (DCR)
51.6mR
Depth
6.72mm
Height
2.4mm
Inductance
3.3uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
6.86mm
Max DC Current
13A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
5A
Reach SVHC Compliant
Unknown
RMS Current (Irms)
5A
RoHS Compliant
Yes
Saturation Current
13A
Self Resonant Frequency
5MHz
Series
IHLP-2525BD-01
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
6.47mm
Compliance
RoHS
Compliant
Datasheet
Vishay IHLP2525BDER3R3M01 Datasheet
Download the complete datasheet for Vishay IHLP2525BDER3R3M01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

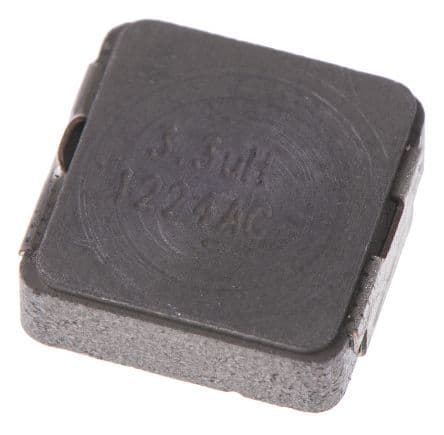

Product Images
