Surface mount general purpose fixed inductor featuring 1.5 µH inductance with 20% tolerance. This composite-core inductor operates at high frequencies, rated for 9A RMS current and 18A saturation current. It offers a low DC resistance of 15 mΩ and operates within a temperature range of -55°C to 125°C. The shielded, 2525-sized component is supplied on tape and reel.
Package2525
Current Rating9A
MountingSurface Mount
Inductance1.5uH
Quick Jump:
Technical Specifications
Vishay IHLP2525CZER1R5M01 technical specifications.
General
Case Code (Imperial)
2525
Package/Case
2525
Core Material
Ferrite, Metal, Composite
Current Rating
9A
DC Resistance (DCR)
15mR
Depth
6.72mm
Height
3mm
Inductance
1.5uH
Inductance Tolerance
20%
Inductor Type
HIGH FREQUENCY
Lead Free
Lead Free
Length
6.86mm
Max DC Current
9A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
9A
Reach SVHC Compliant
Unknown
RMS Current (Irms)
9A
RoHS Compliant
Yes
Saturation Current
18A
Self Resonant Frequency
5MHz
Series
IHLP-2525CZ-01
Series Resistance
15mR
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
6.47mm
Compliance
RoHS
Compliant
Datasheet
Vishay IHLP2525CZER1R5M01 Datasheet
Download the complete datasheet for Vishay IHLP2525CZER1R5M01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

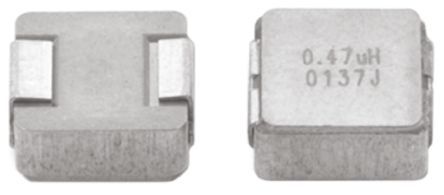

Product Images
