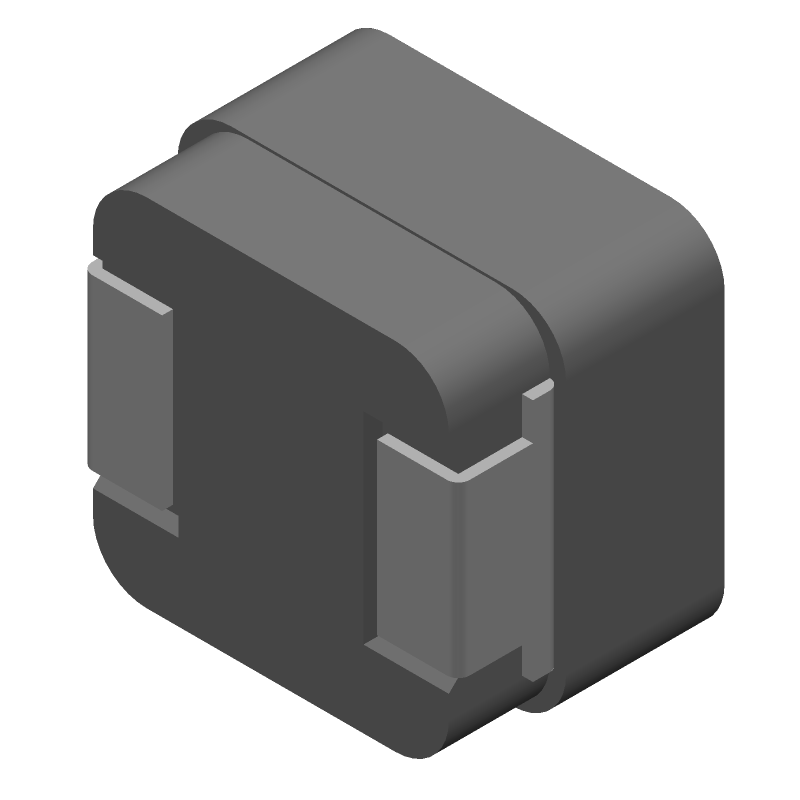

Surface mount general purpose fixed inductor featuring 4.7 µH inductance with a 20% tolerance. This shielded, powdered iron-core component offers a 6.5A rated current and a saturation current of 7A. Operating across a wide temperature range from -55°C to 125°C, it measures 6.86mm in length, 6.47mm in width, and 5mm in height, with a DC resistance of 30.3mΩ. Designed for surface mounting, it is supplied on tape and reel.
Package2525
Current Rating6.5A
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Vishay IHLP2525EZER4R7M01 technical specifications.
General
| Case Code (Imperial) | 2525 |
| Package/Case | 2525 |
| Core Material | Ferrite, Metal, Composite |
| Current Rating | 6.5A |
| DC Resistance (DCR) | 30.3mR |
| Depth | 6.72mm |
| Height | 5mm |
| Inductance | 4.7uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 6.86mm |
| Max DC Current | 6.5A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 6.5A |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 6.5A |
| RoHS Compliant | Yes |
| Saturation Current | 7A |
| Self Resonant Frequency | 1MHz |
| Series | IHLP-2525EZ-01 |
| Series Resistance | 30.3mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6.47mm |
