Surface mount shielded wirewound power inductor with 820nH inductance and 20% tolerance. Features a 2525 package size, 16.5A maximum DC current, and 13A saturation current. Operates from -55°C to 125°C with a low DC resistance of 4.9mR at 100kHz test frequency. Composite core material and tape and reel packaging for efficient assembly.
Package2525
Resistance4.6mR
MountingSurface Mount
Inductance820nH
Quick Jump:
Technical Specifications
Vishay IHLP2525EZERR82M01 technical specifications.
General
| Package/Case | 2525 |
| Core Material | Ferrite, Metal, Composite |
| DC Resistance (DCR) | 4.9mR |
| Depth | 6.72mm |
| Height | 5mm |
| Inductance | 820nH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 6.86mm |
| Max DC Current | 16.5A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 4.6mR |
| RoHS Compliant | Yes |
| Saturation Current | 13A |
| Self Resonant Frequency | 1MHz |
| Series | IHLP-2525EZ-01 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6.47mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay IHLP2525EZERR82M01 Datasheet
Download the complete datasheet for Vishay IHLP2525EZERR82M01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

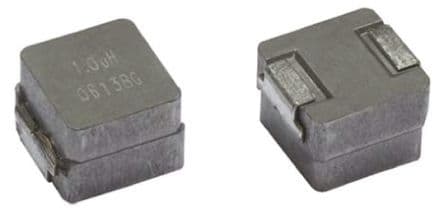

Product Images
