General purpose fixed inductor, 4.7 µH inductance with 20% tolerance. Features a composite core material and shielded construction. Rated for 9.5A RMS current and 7.6A DC saturation current. Operates from -55°C to 125°C. Surface mountable in a 4040 package with low 14.2 mΩ DC resistance.
Package4040
Current Rating9.5A
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Vishay IHLP4040DZER4R7M11 technical specifications.
General
| Package/Case | 4040 |
| Core Material | Metal, Composite, Ferrite |
| Current Rating | 9.5A |
| DC Resistance (DCR) | 14.2mR |
| Depth | 10.3mm |
| Height | 4mm |
| Height - Seated (Max) | 0.157inch |
| Inductance | 4.7uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 10.92mm |
| Max DC Current | 7.6A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 9.5A |
| RoHS Compliant | Yes |
| Saturation Current | 7.6A |
| Self Resonant Frequency | 1MHz |
| Series | IHLP-4040DZ-11 |
| Series Resistance | 14.2mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 0.405inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay IHLP4040DZER4R7M11 Datasheet
Download the complete datasheet for Vishay IHLP4040DZER4R7M11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

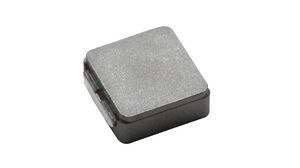

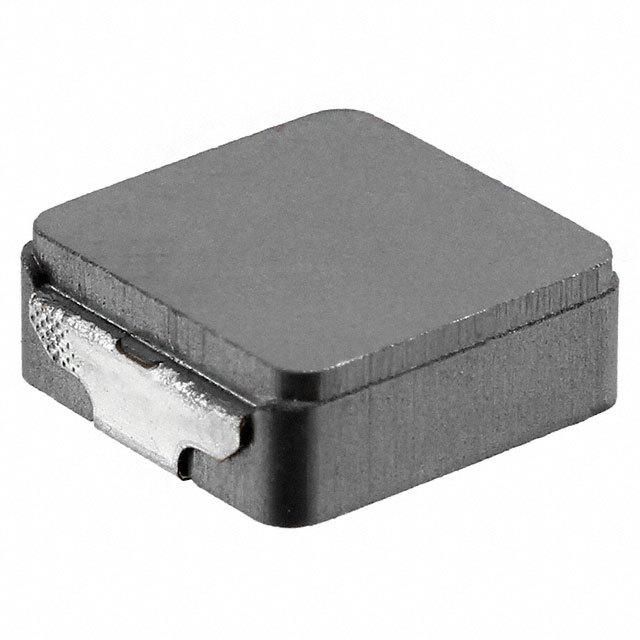

Product Images
