Surface mount fixed inductor, 0.36µH inductance with 20% tolerance, designed for high current applications up to 31.5A RMS. Features a shielded, wirewound construction with a powdered iron core, offering a low DC resistance of 1.4mΩ. Operates across a wide temperature range from -55°C to 125°C, with a saturation current of 60A. Packaged in a 4040 case size, this RoHS compliant component is supplied on tape and reel.
Package4040
Current Rating31.5A
MountingSurface Mount
Inductance360nH
Quick Jump:
Technical Specifications
Vishay IHLP4040DZERR36M01 technical specifications.
General
| Package/Case | 4040 |
| Core Material | Ferrite, Metal, Composite |
| Current Rating | 31.5A |
| DC Resistance (DCR) | 1.4mR |
| Depth | 10.3mm |
| Height | 4mm |
| Height - Seated (Max) | 0.157inch |
| Inductance | 360nH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 0.43inch |
| Max DC Current | 60A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 31.5A |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 31.5A |
| RoHS Compliant | Yes |
| Saturation Current | 60A |
| Self Resonant Frequency | 5MHz |
| Series | IHLP-4040DZ-01 |
| Series Resistance | 1.4mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.070548oz |
| Width | 10.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay IHLP4040DZERR36M01 Datasheet
Download the complete datasheet for Vishay IHLP4040DZERR36M01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

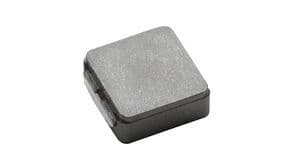

Product Images
