Surface mount general purpose inductor with 560nH inductance and 20% tolerance. Features a ferrite core, 1.8mR DC resistance, and a maximum DC current of 49A. Operates within a temperature range of -55°C to 125°C and is shielded. Packaged in a 4040 case code, it is RoHS compliant and suitable for tape and reel packaging.
Package4040
Resistance1.7mR
MountingSurface Mount
Inductance560nH
Quick Jump:
Technical Specifications
Vishay IHLP4040DZERR56M01 technical specifications.
General
Case Code (Imperial)
4040
Package/Case
4040
Core Material
Ferrite
DC Resistance (DCR)
1.8mR
Depth
10.3mm
Height
4mm
Inductance
560nH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
10.3mm
Max DC Current
49A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
27.5A
Reach SVHC Compliant
Unknown
Resistance
1.7mR
RMS Current (Irms)
27.5A
RoHS Compliant
Yes
Saturation Current
49A
Self Resonant Frequency
5MHz
Series
IHLP-4040DZ-01
Series Resistance
1.8mR
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Weight
0.070548oz
Width
10.3mm
Compliance
RoHS
Compliant
Datasheet
Vishay IHLP4040DZERR56M01 Datasheet
Download the complete datasheet for Vishay IHLP4040DZERR56M01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

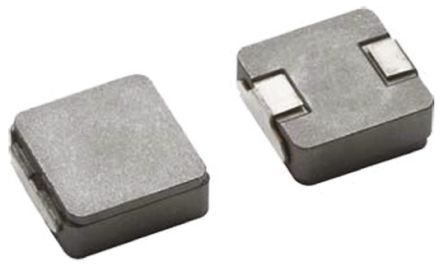

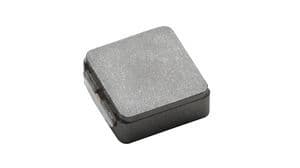

Product Images
