Surface mount shielded wirewound power inductor with 0.68µH inductance and 20% tolerance, tested at 100kHz. Features a 5050 package size, metal composite core, and a maximum DC current rating of 28A, with a saturation current of 49A. Offers low DC resistance of 2.5mΩ and operates across a temperature range of -55°C to 125°C. Packaged in tape and reel for automated assembly.
Package5050
MountingSurface Mount
Inductance680nH
Quick Jump:
Technical Specifications
Vishay IHLP5050CEERR68M01 technical specifications.
General
| Package/Case | 5050 |
| Core Material | Metal, Composite |
| DC Resistance (DCR) | 2.5mR |
| Depth | 12.9mm |
| Height | 3.5mm |
| Inductance | 680nH |
| Lead Free | Lead Free |
| Length | 13.2mm |
| Max DC Current | 49A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 28A |
| RoHS Compliant | Yes |
| Saturation Current | 49A |
| Self Resonant Frequency | 5MHz |
| Series | IHLP-5050CE-01 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 12.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay IHLP5050CEERR68M01 Datasheet
Download the complete datasheet for Vishay IHLP5050CEERR68M01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

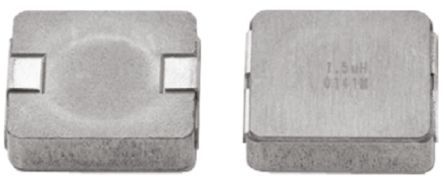

Product Images
