Surface mount shielded wirewound power inductor with 220nH inductance and 20% tolerance. Features a 51A RMS current rating and 110A saturation current, with a low 0.8mΩ DC resistance. Operates over a wide temperature range from -55°C to 125°C. Packaged in a 5050 case with powdered iron core material.
Package5050
Current Rating51A
MountingSurface Mount
Inductance220nH
Quick Jump:
Technical Specifications
Vishay IHLP5050EZERR22M01 technical specifications.
General
| Package/Case | 5050 |
| Core Material | Metal, Composite |
| Current Rating | 51A |
| DC Resistance (DCR) | 0.8mR |
| Depth | 12.9mm |
| Height | 5mm |
| Inductance | 220nH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 13.2mm |
| Max DC Current | 110A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 51A |
| RoHS Compliant | Yes |
| Saturation Current | 110A |
| Self Resonant Frequency | 5MHz |
| Series | IHLP-5050EZ-01 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 12.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay IHLP5050EZERR22M01 Datasheet
Download the complete datasheet for Vishay IHLP5050EZERR22M01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

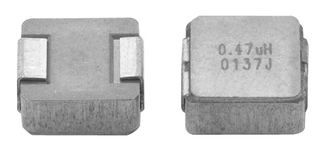

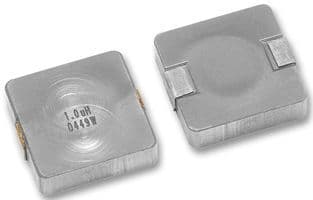

Product Images
