Surface mount shielded wirewound power inductor with 0.68µH inductance and 20% tolerance, designed for high current applications up to 54A saturation and 34A RMS. Features a low DC resistance of 1.7mΩ at a test frequency of 100kHz, a powdered iron core, and a compact 5050 package. Operating temperature range from -55°C to 125°C, with a self-resonant frequency of 5MHz. Packaged in tape and reel for automated assembly.
Package5050
MountingSurface Mount
Inductance680nH
Quick Jump:
Technical Specifications
Vishay IHLP5050EZERR68M01 technical specifications.
General
| Package/Case | 5050 |
| Core Material | Ferrite |
| DC Resistance (DCR) | 1.7mR |
| Depth | 12.9mm |
| Height | 5mm |
| Inductance | 680nH |
| Inductance Tolerance | 20% |
| Length | 13.2mm |
| Max DC Current | 54A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 34A |
| RoHS Compliant | Yes |
| Saturation Current | 54A |
| Self Resonant Frequency | 5MHz |
| Series | IHLP-5050EZ-01 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 12.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay IHLP5050EZERR68M01 Datasheet
Download the complete datasheet for Vishay IHLP5050EZERR68M01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

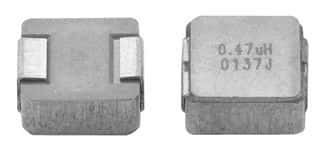

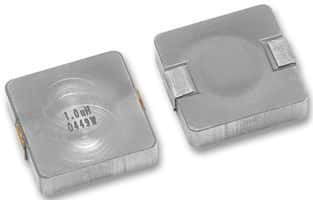

Product Images
