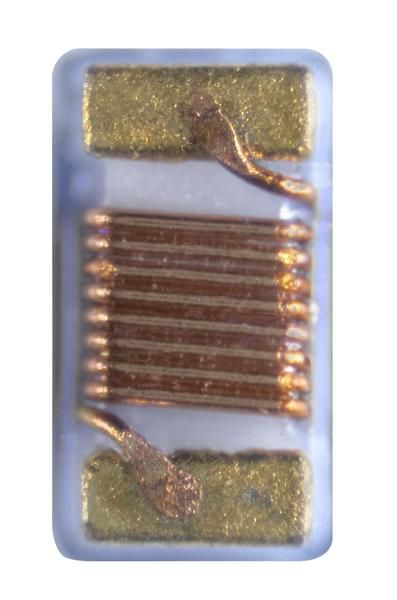

Surface mount fixed inductor featuring 47µH inductance with a 10% tolerance, tested at 2.52MHz. This wirewound, molded RF chip inductor utilizes a powdered iron core and offers a Q-factor of 30 at its test frequency. Designed for surface mounting in a 1210 case code, it operates within a temperature range of -55°C to 125°C and supports a maximum DC current of 91mA with a DC resistance of 9 Ohms.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay IMC1210SY470K datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay IMC1210SY470K technical specifications.
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Core Material | Ferrite |
| DC Resistance (DCR) | 9R |
| Depth | 2.69mm |
| Height | 2.41mm |
| Inductance | 47uH |
| Lead Free | Contains Lead |
| Length | 3.2mm |
| Max DC Current | 91mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | No |
| Self Resonant Frequency | 14MHz |
| Series | IMC-1210 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 2.52MHz |
| Tolerance | 10% |
| Weight | 0.000564oz |
| Width | 2.49mm |
| RoHS | Not Compliant |
