N-Channel Power MOSFET featuring 100V drain-source voltage and 14A continuous drain current. Offers a low 160mΩ drain-source on-resistance. Designed for through-hole mounting in a TO-220AB package, this silicon metal-oxide semiconductor FET operates within a -55°C to 175°C temperature range and boasts 88W maximum power dissipation. RoHS compliant with a 4V threshold voltage and fast switching times.
PackageTO-220AB
Current Rating14A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Vishay IRF530PBF technical specifications.
General
Package/Case
TO-220AB
Continuous Drain Current (ID)
14A
Current Rating
14A
Drain to Source Resistance
270mR
Drain to Source Voltage (Vdss)
100V
Drain-source On Resistance-Max
160mR
Dual Supply Voltage
100V
Fall Time
20ns
Gate to Source Voltage (Vgs)
20V
Height
9.01mm
Input Capacitance
670pF
Lead Free
Lead Free
Length
10.41mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
88W
Mount
Through Hole
Nominal Vgs
4V
Number of Channels
1
Number of Elements
1
Package Quantity
50
Packaging
Rail/Tube
Polarity
N-CHANNEL
Power Dissipation
88W
Radiation Hardening
No
Rds On Max
160mR
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Through Hole
Threshold Voltage
4V
Turn-Off Delay Time
23ns
Turn-On Delay Time
10ns
DC Rated Voltage
100V
Weight
0.211644oz
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Vishay IRF530PBF Datasheet
Download the complete datasheet for Vishay IRF530PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

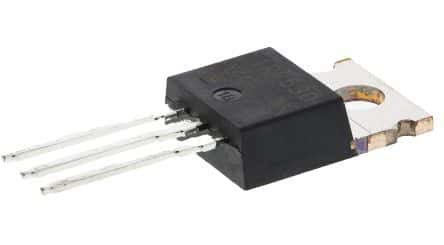

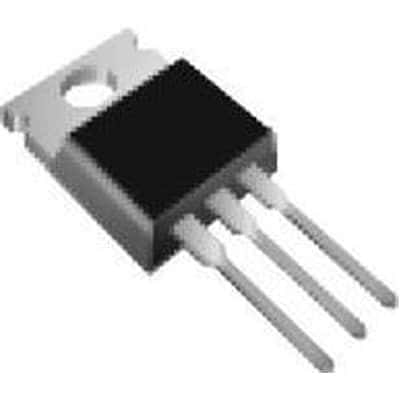

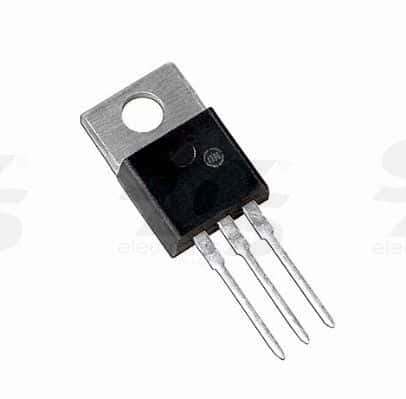

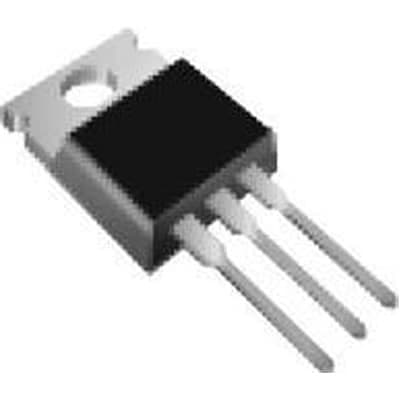

Product Images
