IRF540PBF

Name: IRF540PBF Vishay
Brand: Vishay
SKU: IRF540PBF
Price: 2.25 USD
Availability: InStock

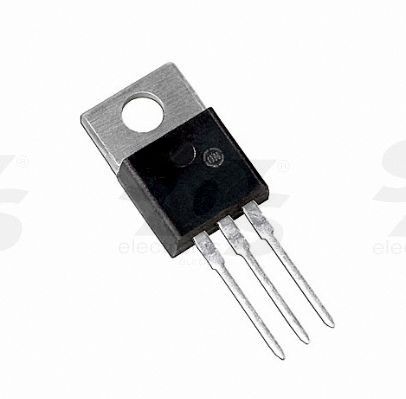

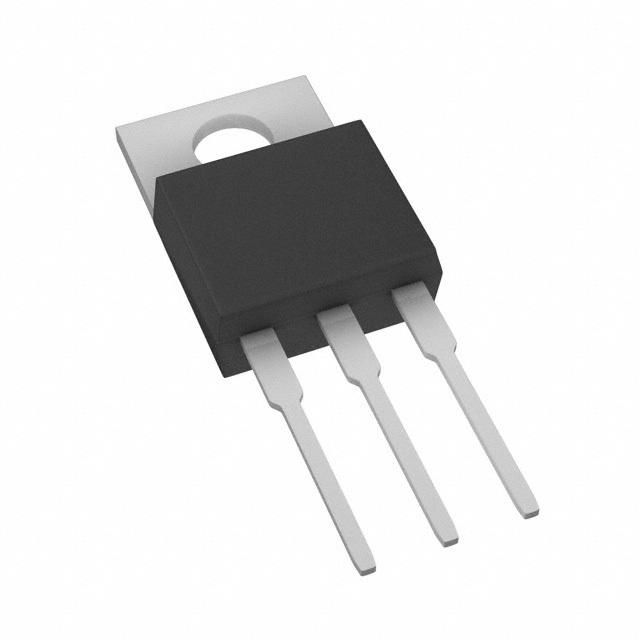

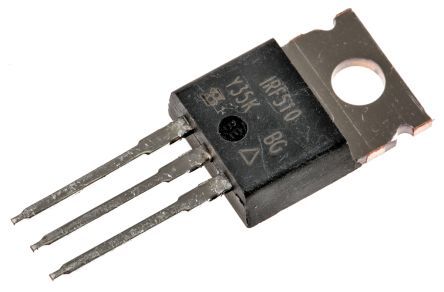

N-Channel MOSFET, 100V, 28A, 77mR, TO-220AB

N-Channel Power MOSFET, 100V Drain-Source Voltage, 28A Continuous Drain Current, and 77mΩ Max Drain-Source On-Resistance. Features include a 150W Max Power Dissipation, 1.7nF Input Capacitance, and 4V Threshold Voltage. This silicon Metal-Oxide-Semiconductor FET is housed in a TO-220AB package, suitable for through-hole mounting, and is RoHS compliant. Operating temperature range is -55°C to 175°C.

PackageTO-220AB

Voltage100V

Current28A

Current Rating28A

Quick Jump:

Pricing & Availability

Distributor	Package Type	Min Qty	1+	5+	10+	12+	Stock	Action
Quest	-	5	-	2.25	-	1.875	12 In Stock	View
TME	pcs	1	1.32	1.12	1.09	-	-	View

Chat with Datasheet

Technical Specifications

Vishay IRF540PBF technical specifications.

General

Package/Case	TO-220AB
Continuous Drain Current (ID)	28A
Current	28A
Current Rating	28A
Drain to Source Breakdown Voltage	100V
Drain to Source Resistance	77mR
Drain to Source Voltage (Vdss)	100V
Drain-source On Resistance-Max	77mR
Fall Time	43ns
Gate to Source Voltage (Vgs)	20V
Height	9.01mm
Input Capacitance	1.7nF
Lead Free	Lead Free
Length	10.51mm
Max Operating Temperature	175°C
Min Operating Temperature	-55°C
Max Power Dissipation	150W
Mount	Through Hole
Nominal Vgs	4V
Number of Channels	1
Number of Elements	1
Package Quantity	50
Packaging	Rail/Tube
Polarity	N-CHANNEL
Polarization	N
Power Dissipation	150W
Radiation Hardening	No
Rds On Max	77mR
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Threshold Voltage	4V
Turn-Off Delay Time	53ns
Turn-On Delay Time	11ns
Voltage	100V
DC Rated Voltage	100V
Weight	0.211644oz
Width	4.7mm
