N-channel power MOSFET for general-purpose applications. Features 100V drain-source breakdown voltage and 1.3A continuous drain current. Offers a maximum drain-source on-resistance of 270mR. Operates within a temperature range of -55°C to 175°C with a maximum power dissipation of 1.3W. Packaged in a through-hole DIP format.
PackageDIP
Current Rating1.3A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Vishay IRFD120PBF technical specifications.
General
Package/Case
DIP
Continuous Drain Current (ID)
1.3A
Current Rating
1.3A
Drain to Source Breakdown Voltage
100V
Drain to Source Resistance
270mR
Drain to Source Voltage (Vdss)
100V
Drain-source On Resistance-Max
270mR
Fall Time
27ns
Gate to Source Voltage (Vgs)
20V
Height
3.37mm
Input Capacitance
360pF
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.3W
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Package Quantity
2500
Packaging
Rail/Tube
Polarity
N-CHANNEL
Polarization
N
Power Dissipation
1.3W
Radiation Hardening
No
Rds On Max
270mR
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Threshold Voltage
4V
Turn-Off Delay Time
18ns
Turn-On Delay Time
6.8ns
DC Rated Voltage
100V
Width
6.29mm
Compliance
RoHS
Compliant
Datasheet
Vishay IRFD120PBF Datasheet
Download the complete datasheet for Vishay IRFD120PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

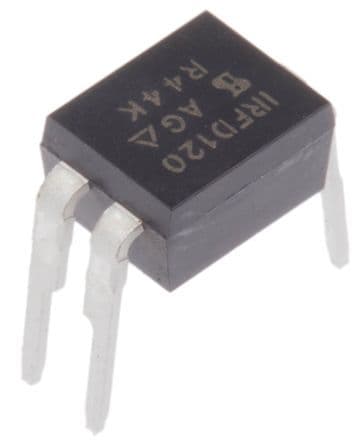

Product Images
