N-Channel Power MOSFET, 500V Vds, 4.6A continuous drain current, and 850mΩ drain-source on-resistance. This silicon Metal-Oxide-Semiconductor FET features a TO-220AB package for through-hole mounting, with a maximum power dissipation of 40W. Operating temperature range spans from -55°C to 150°C, with a threshold voltage of 4V and fast switching times including a 14ns turn-on delay. Isolation voltage is rated at 2.5kV, and the component is RoHS compliant.
PackageTO-220-3
MountingThrough Hole
PolarityN-CHANNEL
Power40W
Quick Jump:
Technical Specifications
Vishay IRFI840GPBF technical specifications.
General
Package/Case
TO-220-3
Continuous Drain Current (ID)
4.6A
Drain to Source Breakdown Voltage
500V
Drain to Source Resistance
850mR
Drain to Source Voltage (Vdss)
500V
Drain-source On Resistance-Max
850mR
Fall Time
21ns
Gate to Source Voltage (Vgs)
20V
Height
9.8mm
Input Capacitance
1.3nF
Isolation Voltage
2.5kV
Lead Free
Lead Free
Length
10.63mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
40W
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Package Quantity
50
Packaging
Rail/Tube
Polarity
N-CHANNEL
Polarization
N
Power Dissipation
40W
Radiation Hardening
No
Rds On Max
850mR
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Threshold Voltage
4V
Turn-Off Delay Time
55ns
Turn-On Delay Time
14ns
DC Rated Voltage
500V
Weight
0.211644oz
Width
4.83mm
Compliance
RoHS
Compliant
Datasheet
Vishay IRFI840GPBF Datasheet
Download the complete datasheet for Vishay IRFI840GPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

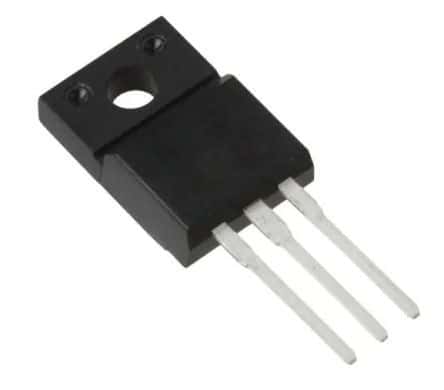

Product Images
