N-Channel Power MOSFET, 60V Drain-Source Voltage, 70A Continuous Drain Current, and 9mΩ Max Drain-Source On-Resistance. Features a 300W Max Power Dissipation, 175°C Max Operating Temperature, and a TO-247AC through-hole package. Includes 21ns Turn-On Delay Time and 190ns Fall Time. RoHS compliant and lead-free.
PackageTO-247AC
Voltage60V
Current80A
Current Rating70A
Quick Jump:
Technical Specifications
Vishay IRFP064PBF technical specifications.
General
| Package/Case | TO-247AC |
| Continuous Drain Current (ID) | 70A |
| Current | 80A |
| Current Rating | 70A |
| Drain to Source Breakdown Voltage | 60V |
| Drain to Source Resistance | 77mR |
| Drain to Source Voltage (Vdss) | 60V |
| Drain-source On Resistance-Max | 9mR |
| Fall Time | 190ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 20.7mm |
| Input Capacitance | 7.4nF |
| Lead Free | Lead Free |
| Length | 15.87mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300W |
| Mount | Through Hole |
| Nominal Vgs | 4V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Polarization | N |
| Power Dissipation | 300W |
| Radiation Hardening | No |
| Rds On Max | 9mR |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Threshold Voltage | 4V |
| Turn-Off Delay Time | 110ns |
| Turn-On Delay Time | 21ns |
| Voltage | 60V |
| DC Rated Voltage | 60V |
| Weight | 1.340411oz |
| Width | 5.31mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay IRFP064PBF Datasheet
Download the complete datasheet for Vishay IRFP064PBF to view detailed technical specifications.
No datasheet is available for this part.

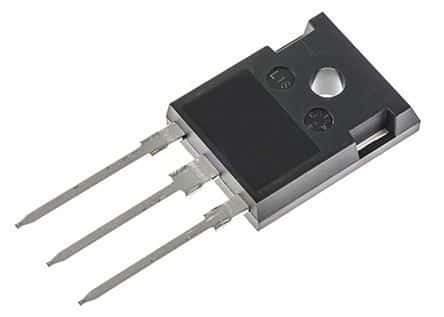

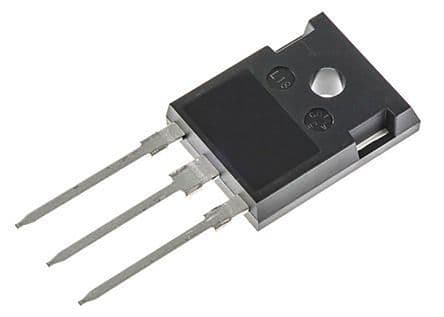

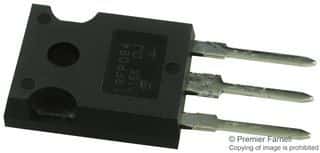

Product Images
