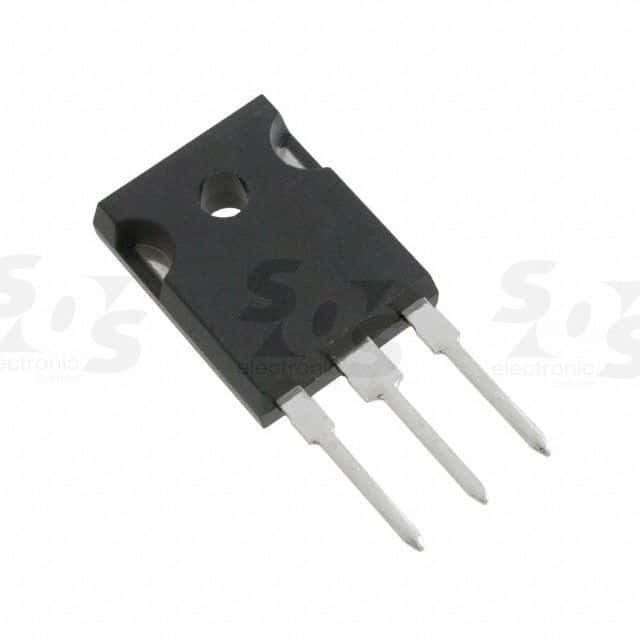

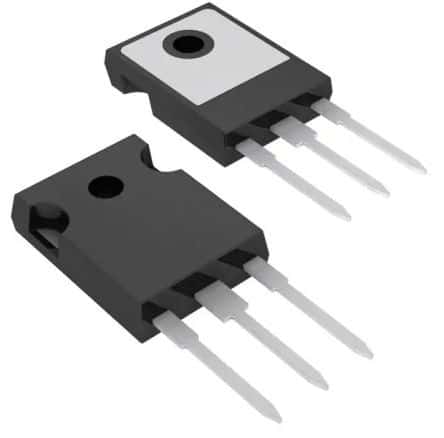

P-channel power MOSFET featuring -200V drain-source breakdown voltage and 12A continuous drain current. This silicon Metal-Oxide-Semiconductor FET offers a low 500mΩ drain-source on-resistance and a maximum power dissipation of 150W. Designed for through-hole mounting in a TO-247AC package, it operates across a temperature range of -55°C to 150°C. Key switching characteristics include a 14ns turn-on delay and 38ns fall time.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay IRFP9240PBF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay IRFP9240PBF technical specifications.
| Package/Case | TO-247AC |
| Continuous Drain Current (ID) | 12A |
| Current Rating | -12A |
| Drain to Source Breakdown Voltage | -200V |
| Drain to Source Resistance | 500mR |
| Drain to Source Voltage (Vdss) | -200V |
| Drain-source On Resistance-Max | 500mR |
| Dual Supply Voltage | -200V |
| Fall Time | 38ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 20.7mm |
| Input Capacitance | 1.2nF |
| Lead Free | Lead Free |
| Length | 15.87mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 150W |
| Mount | Through Hole |
| Nominal Vgs | -4V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Polarity | P-CHANNEL |
| Polarization | P |
| Power Dissipation | 150W |
| Radiation Hardening | No |
| Rds On Max | 500mR |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Through Hole |
| Threshold Voltage | -4V |
| Turn-Off Delay Time | 39ns |
| Turn-On Delay Time | 14ns |
| DC Rated Voltage | -200V |
| Weight | 1.340411oz |
| Width | 5.31mm |
| RoHS | Compliant |
