N-channel power MOSFET with 60V drain-source voltage and 7.7A continuous drain current. Features 200mΩ maximum drain-source on-resistance and 4V threshold voltage. Operates within a temperature range of -55°C to 150°C with a maximum power dissipation of 2.5W. Packaged in a TO-251 (IPAK-3) through-hole mount with lead-free construction. Includes 10ns turn-on delay, 13ns turn-off delay, and 19ns fall time.
PackageTO-251-3
MountingThrough Hole
PolarityN-CHANNEL
Power2.5W
Quick Jump:
Technical Specifications
Vishay IRFU014PBF technical specifications.
General
| Package/Case | TO-251-3 |
| Continuous Drain Current (ID) | 7.7A |
| Drain to Source Resistance | 200mR |
| Drain to Source Voltage (Vdss) | 60V |
| Drain-source On Resistance-Max | 200mR |
| Fall Time | 19ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 6.22mm |
| Input Capacitance | 300pF |
| Lead Free | Lead Free |
| Lead Length | 9.65mm |
| Length | 6.73mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2.5W |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 3000 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 2.5W |
| Radiation Hardening | No |
| Rds On Max | 200mR |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Threshold Voltage | 4V |
| Turn-Off Delay Time | 13ns |
| Turn-On Delay Time | 10ns |
| Weight | 0.01164oz |
| Width | 2.39mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay IRFU014PBF Datasheet
Download the complete datasheet for Vishay IRFU014PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

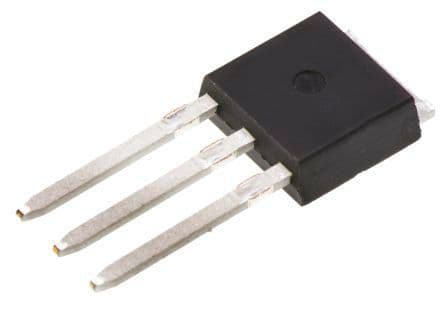

Product Images
