N-channel MOSFET transistor with 60V drain-source breakdown voltage and 7.7A continuous drain current. Features a 200mΩ maximum drain-source on-resistance and 2.5W power dissipation. Operates within a -55°C to 150°C temperature range. Packaged in a TO-251-3 (IPAK) through-hole mount with 3 leads. RoHS compliant and lead-free.
PackageTO-251-3
Current Rating7.7A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Vishay IRLU014PBF technical specifications.
General
| Package/Case | TO-251-3 |
| Continuous Drain Current (ID) | 7.7A |
| Current Rating | 7.7A |
| Drain to Source Breakdown Voltage | 60V |
| Drain to Source Resistance | 200mR |
| Drain to Source Voltage (Vdss) | 60V |
| Drain-source On Resistance-Max | 200mR |
| Fall Time | 26ns |
| Gate to Source Voltage (Vgs) | 10V |
| Height | 6.22mm |
| Input Capacitance | 400pF |
| Lead Free | Lead Free |
| Length | 6.73mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2.5W |
| Mount | Through Hole |
| Number of Channels | 1 |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Polarization | N |
| Power Dissipation | 2.5W |
| Radiation Hardening | No |
| Rds On Max | 200mR |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Threshold Voltage | 2V |
| Turn-Off Delay Time | 17ns |
| Turn-On Delay Time | 9.3ns |
| DC Rated Voltage | 60V |
| Weight | 0.01164oz |
| Width | 2.39mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay IRLU014PBF Datasheet
Download the complete datasheet for Vishay IRLU014PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

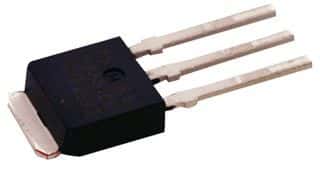

Product Images
