Vishay
IWAS4832FFEB9R7J50
Wireless Charging Coil Receiver 9.7uH ±5% 200KHz 200mOhm DCR 30Q-Factor Through Hole
Package4832
Inductance9.7uH
Quick Jump:
Technical Specifications
Vishay IWAS4832FFEB9R7J50 technical specifications.
General
Package/Case
4832
DC Resistance (DCR)
200mR
Depth
1.05mm
Height
1.05mm
Inductance
9.7uH
Inductance Tolerance
5%
Lead Free
Lead Free
Lead/Base Style
Radial
Length
48mm
Logic Function
Receiver
Number of Coils
1
Package Quantity
100
Packaging
Bulk
Q Factor
30
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Tolerance
5%
Width
32mm
Compliance
RoHS
Compliant
Datasheet
Vishay IWAS4832FFEB9R7J50 Datasheet
Download the complete datasheet for Vishay IWAS4832FFEB9R7J50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

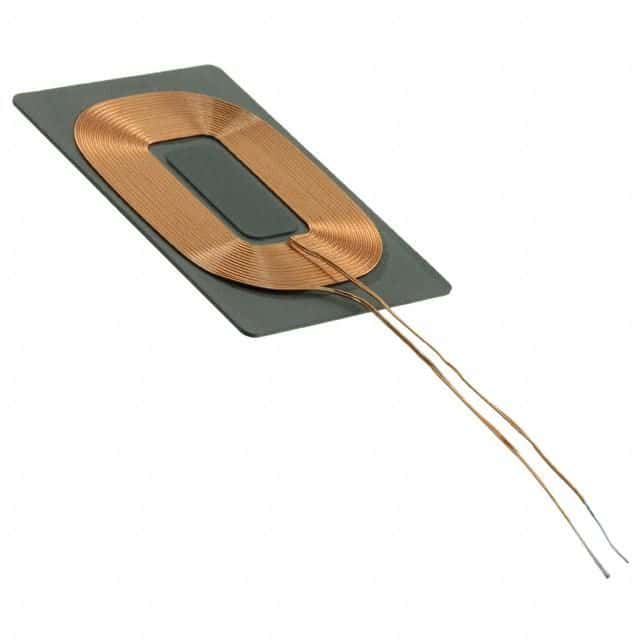

Product Images
