PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay KBL08-E4/51 technical specifications.
General
Average Rectified Current
4A
Package/Case
SIP
Forward Current
4A
Height
16.3mm
Lead Free
Lead Free
Length
19.5mm
Max Forward Surge Current (Ifsm)
200A
Max Operating Temperature
150°C
Min Operating Temperature
-50°C
Max Repetitive Reverse Voltage (Vrrm)
800V
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Max Surge Current
200A
Mount
Through Hole
Number of Elements
1
Output Current
4A
Package Quantity
300
Packaging
Bulk
Peak Non-Repetitive Surge Current
200A
Radiation Hardening
No
Reverse Voltage
800V
RoHS Compliant
Yes
Width
6.5mm
Compliance
RoHS
Compliant
Datasheet
Vishay KBL08-E4/51 Datasheet
Download the complete datasheet for Vishay KBL08-E4/51 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

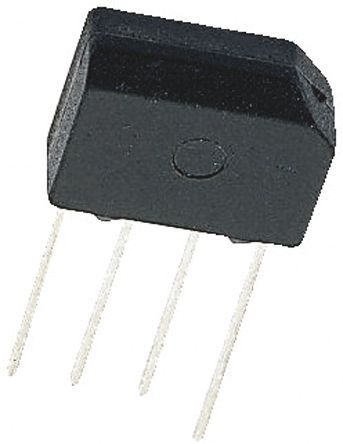

Product Images
