PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay KBU8M-E4/51 technical specifications.
General
Average Rectified Current
8A
Package/Case
SIP
Forward Current
8A
Height
19.3mm
Lead Free
Lead Free
Length
23.7mm
Max Forward Surge Current (Ifsm)
300A
Max Operating Temperature
150°C
Min Operating Temperature
-50°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Current
10uA
Max Reverse Leakage Current
10uA
Max Surge Current
300A
Mount
Through Hole
Number of Elements
1
Output Current
8A
Package Quantity
250
Packaging
Bulk
Peak Non-Repetitive Surge Current
300A
Radiation Hardening
No
RoHS Compliant
Yes
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Vishay KBU8M-E4/51 Datasheet
Download the complete datasheet for Vishay KBU8M-E4/51 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

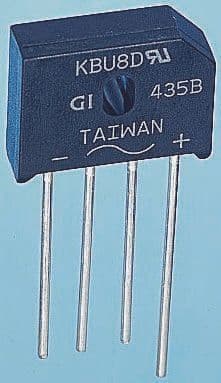

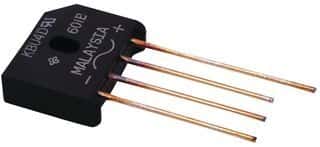

Product Images
