General purpose rectifier diode, small signal switching silicon component with a maximum repetitive reverse voltage of 100V and a maximum DC reverse voltage of 75V. Features an average rectified current of 300mA and a forward current rating of 150mA, with a maximum forward surge current of 2A. Offers a fast reverse recovery time of 8ns and a maximum power dissipation of 500mW. Operates across a wide temperature range from -65°C to 175°C. Packaged in a 2-pin Mini-MELF SOD-80 for surface mount applications.
Voltage100V
Current Rating150mA
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Vishay LL4148-GS08 technical specifications.
General
| Average Rectified Current | 300mA |
| Current Rating | 150mA |
| Diameter | 1.6mm |
| Forward Current | 150mA |
| Lead Free | Lead Free |
| Length | 3.7mm |
| Max Forward Surge Current (Ifsm) | 2A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Voltage (DC) | 75V |
| Mount | Surface Mount |
| Outside Diameter | 1.5mm |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Peak Non-Repetitive Surge Current | 2A |
| Power Dissipation | 500mW |
| Primary Type | SWITCHING |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 8ns |
| Reverse Recovery Time-Max | 8ns |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LL4148-GS08 Datasheet
Download the complete datasheet for Vishay LL4148-GS08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

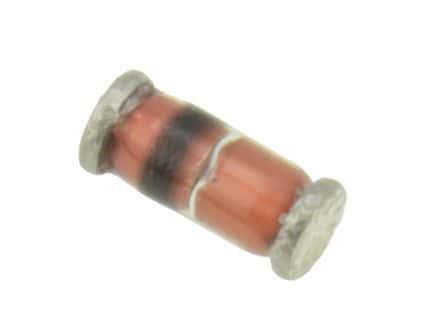

Product Images
