LPS0800H1000JB

Datasheet

800W 100 Ohm 5% Chassis Mount Resistor, Thick Film, 5kV

Vishay

LPS0800H1000JB

Name: LPS0800H1000JB Vishay
Brand: Vishay
SKU: LPS0800H1000JB

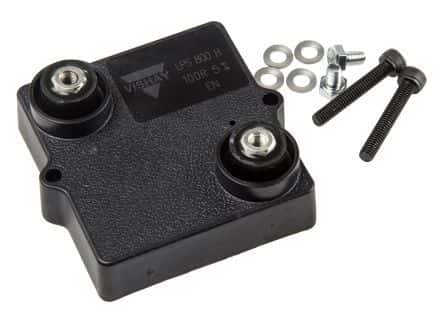

800W 100 Ohm 5% Chassis Mount Resistor, Thick Film, 5kV

800W thick film chassis mount resistor with 100 Ohm resistance and 5% tolerance. Features a molded package with threaded lead style and screw termination. Operates from -55°C to 175°C, with a maximum power dissipation of 800W and a voltage rating of 5kV. Dimensions include a 1-inch height, 2.362-inch length, and 57mm width. RoHS compliant.

PackageMolded

Resistance100R

Voltage Rating5kV

Quick Jump:

Technical Specifications

Vishay LPS0800H1000JB technical specifications.

General

Package/Case	Molded
Height	1inch
Lead/Base Style	Threaded
Length	2.362inch
Max Operating Temperature	175°C
Min Operating Temperature	-55°C
Max Power Dissipation	800W
Package Quantity	15
Packaging	Bulk
Radiation Hardening	No
Reach SVHC Compliant	Unknown
Resistance	100R
Resistance Tolerance	5%
Resistor Type	Thick Film
RoHS Compliant	Yes
Series	LPS 800
Technology	THICK FILM
Termination	Screw
Test Voltage	5kV
Tolerance	5%
Voltage Rating	5kV
DC Rated Voltage	5kV
Width	57mm
