100W thick film through-hole resistor with 1kR resistance and 5% tolerance. Features automotive AEC-Q200 qualification, a TO-247 package with tin matte plating, and a 375V voltage rating. Operates from -55°C to 175°C with a temperature coefficient of ±150ppm/°C. Supplied in a rail/tube package.
PackageTO-247
Resistance1kR
Voltage Rating375V
Quick Jump:
Technical Specifications
Vishay LTO100F10000JTE3 technical specifications.
General
Package/Case
TO-247
Contact Plating
Tin, Matte
Depth
5mm
Features
Automotive AEC-Q200
Height
20.7mm
Lead Diameter
1.5mm
Lead Pitch
10.16mm
Length
15.76mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
100W
Number of Terminations
2
Package Quantity
30
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
1kR
Resistance Tolerance
5%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
LTO 100
Technology
THICK FILM
Termination
Radial
Tolerance
5%
Voltage Rating
375V
Voltage Rating (AC)
375V
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Vishay LTO100F10000JTE3 Datasheet
Download the complete datasheet for Vishay LTO100F10000JTE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

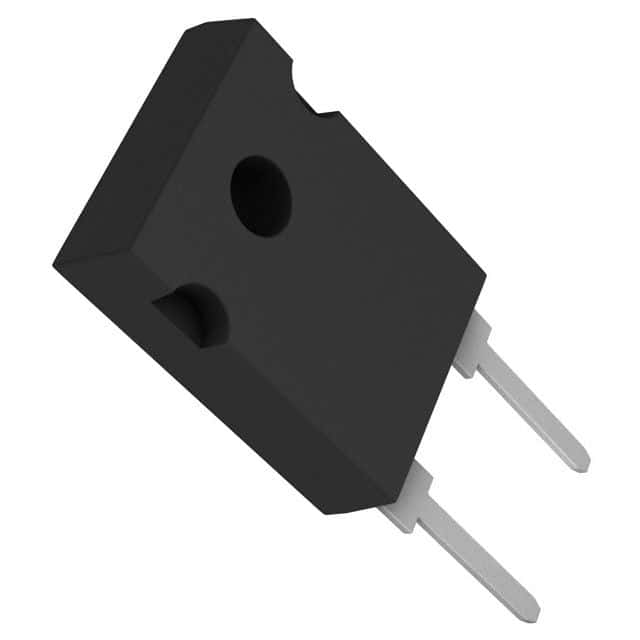

Product Images
