Axial leaded, metal strip current sense resistor with 50mR resistance and 1% tolerance. Features 1W maximum power dissipation, 220mV voltage rating, and operates across a -65°C to 175°C temperature range. Moisture resistant with tin, matte contact plating and a 0.508mm lead diameter. RoHS compliant and lead-free.
PackageAxial
Resistance50mR
Voltage Rating220mV
Quick Jump:
Technical Specifications
Vishay LVR01R0500FE70 technical specifications.
General
Package/Case
Axial
Contact Plating
Tin, Matte
Diameter
2.92mm
Features
Moisture Resistant
Lead Diameter
0.508mm
Lead Free
Lead Free
Lead Length
38.1mm
Length
10.85mm
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Power Dissipation
1W
Number of Terminations
2
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
50mR
Resistance Tolerance
1%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
LVR
Termination
Axial
Tolerance
1%
Voltage Rating
220mV
DC Rated Voltage
220mV
Compliance
RoHS
Compliant
Datasheet
Vishay LVR01R0500FE70 Datasheet
Download the complete datasheet for Vishay LVR01R0500FE70 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

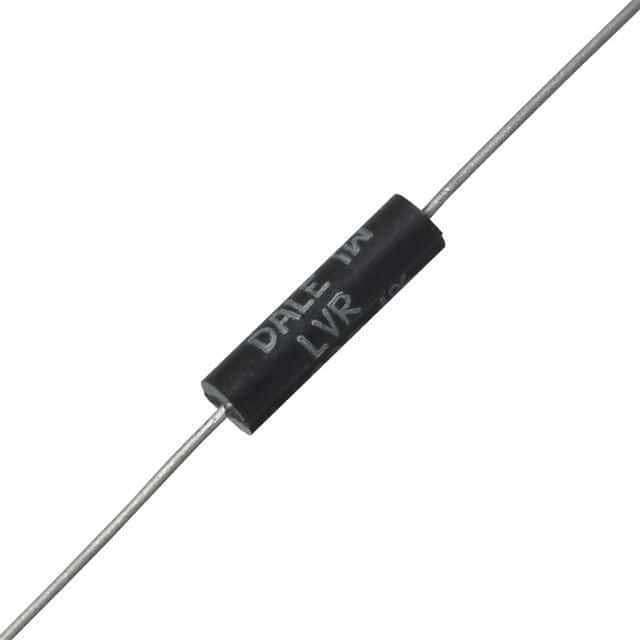

Product Images
