10k Ohm, 1% tolerance chip resistor in a 0603 (1608 metric) surface-mount case. This rectangular component features tin-lead contact plating and a maximum power dissipation of 100mW. Designed for military applications, it operates across a wide temperature range of -55°C to 150°C with a 0.01% failure rate. Packaged on tape and reel, this resistor is compliant with MIL-PRF-55342 standards.
Package0603
Resistance10kR
Quick Jump:
Technical Specifications
Vishay M55342K12B10E0RS3 technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Rectangular |
| Contact Plating | Tin, Lead |
| Depth | 0.81mm |
| Failure Rate | 0.01% |
| Features | Military |
| Height | 0.023inch |
| Lead Free | Contains Lead |
| Length | 0.063inch |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Military Standard | MIL-PRF-55342 |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 10kR |
| RoHS Compliant | No |
| Series | Military, MIL-PRF-55342, RM0603 |
| Tolerance | 1% |
| Width | 0.032inch |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Vishay M55342K12B10E0RS3 Datasheet
Download the complete datasheet for Vishay M55342K12B10E0RS3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

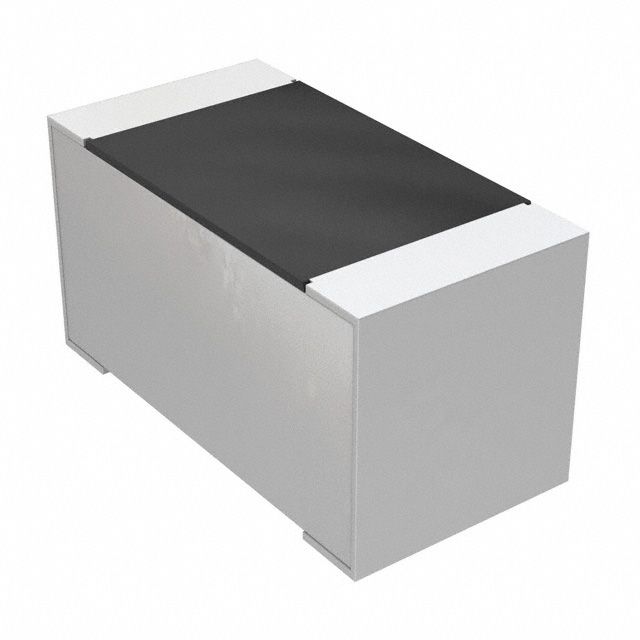

Product Images
