10k Ohm linear taper cermet trimmer resistor with 10% tolerance, rated for 0.5W power dissipation. Features PC pin termination for PCB through-hole mounting, operating across a temperature range of -55°C to 155°C. This general-purpose variable resistor has 21 turns and a cermet element, measuring 9.8mm in length, 5mm in width, and 5mm in depth. RoHS compliant and lead-free.
Resistance10kR
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
Vishay M64X103KB40 technical specifications.
General
| Depth | 5mm |
| Height | 0.386inch |
| Lead Free | Lead Free |
| Length | 9.8mm |
| Max Operating Temperature | 155°C |
| Max Power Dissipation | 500mW |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | PCB, Through Hole |
| Number of Turns | 21 |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 10kR |
| Resistance Tolerance | 10% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | 64 |
| Taper | Linear |
| Technology | CERMET |
| Termination | PC Pin |
| Tolerance | 10% |
| Weight | 1.2g |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay M64X103KB40 Datasheet
Download the complete datasheet for Vishay M64X103KB40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

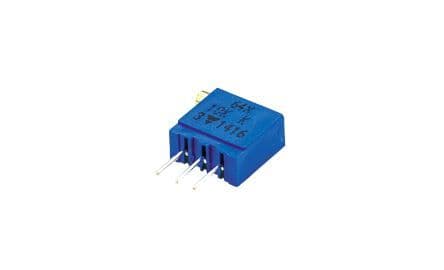

Product Images
