Cermet trimmer resistor, 10kΩ resistance with 10% tolerance, rated for 0.5W power dissipation and 300V AC. Features 21 turns, linear taper, and PCB through-hole mounting with pin terminations. Operates across a wide temperature range of -55°C to 155°C. Square package dimensions are 9.8mm length, 5mm width, and 0.386 inches height. RoHS compliant.
Resistance10kR
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
Vishay M64Y103KB40 technical specifications.
General
Depth
5mm
Height
0.386inch
Lead Free
Lead Free
Length
9.8mm
Max Operating Temperature
155°C
Max Power Dissipation
500mW
Military Standard
Not
Min Operating Temperature
-55°C
Mount
PCB, Through Hole
Number of Turns
21
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
10kR
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
64
Size Code
0402
Taper
Linear
Technology
CERMET
Termination
Pin
Tolerance
10%
Voltage Rating (AC)
300V
Weight
0.028925oz
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Vishay M64Y103KB40 Datasheet
Download the complete datasheet for Vishay M64Y103KB40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

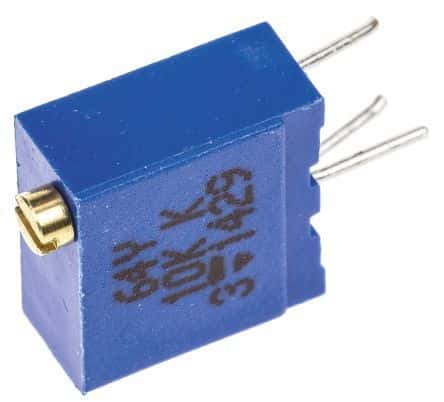

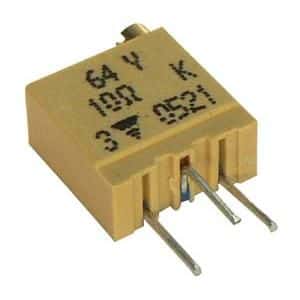

Product Images
