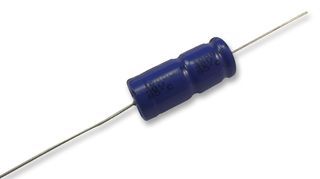

Aluminum electrolytic capacitor, 1000 µF capacitance, 40V DC rated voltage, and 20% tolerance. Features a 12.5mm diameter, 30mm length, and axial leaded, through-hole mounting for PCB applications. Offers 8000 hours of life at 85°C, with a dissipation factor of 12% and ESR of 190mΩ. RoHS compliant with a ripple current rating of 900mA.
PackageAxial
Voltage40V
Capacitance1mF
Voltage Rating40V
Quick Jump:
Technical Specifications
Vishay MAL202117102E3 technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Axial |
| Construction | AXIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 190mR |
| Height | 30mm |
| Impedance | 110mR |
| Lead Diameter | 0.8mm |
| Length | 30mm |
| Life (Hours) | 8000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 260 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 900mA |
| RoHS Compliant | Yes |
| Series | ASM 021 |
| Termination | Axial |
| Tolerance | 20% |
| Voltage | 40V |
| Voltage Rating | 40V |
| DC Rated Voltage | 40V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay MAL202117102E3 Datasheet
Download the complete datasheet for Vishay MAL202117102E3 to view detailed technical specifications.
