Aluminum electrolytic capacitor, 100µF capacitance, 10V DC rated voltage, and 20% tolerance. Features 3.2Ω ESR, 2Ω impedance, and 100mA ripple current. Operates from -40°C to 85°C with a 2500-hour lifespan. Axial package with 4.5mm diameter and 10mm length, suitable for through-hole PCB mounting.
PackageAxial
Voltage10V
Capacitance100uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Vishay MAL202134101E3 technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Axial |
| Construction | AXIAL |
| Diameter | 4.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.2% |
| ESR (Equivalent Series Resistance) | 3.2R |
| Height | 10mm |
| Impedance | 2R |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead/Base Style | Straight |
| Leakage Current | 6uA |
| Length | 10mm |
| Life (Hours) | 2500Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 100mA |
| RoHS Compliant | Yes |
| Series | 021 ASM |
| Termination | Axial |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| Voltage Rating (AC) | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay MAL202134101E3 Datasheet
Download the complete datasheet for Vishay MAL202134101E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

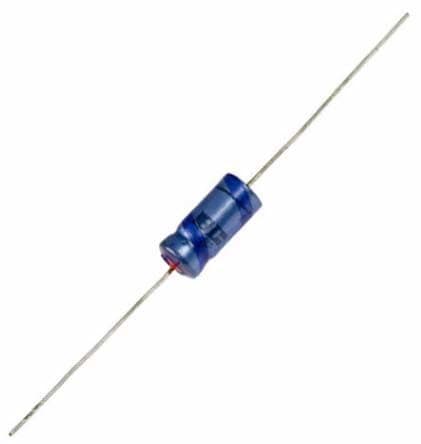

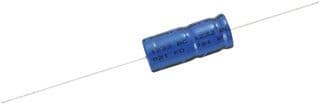

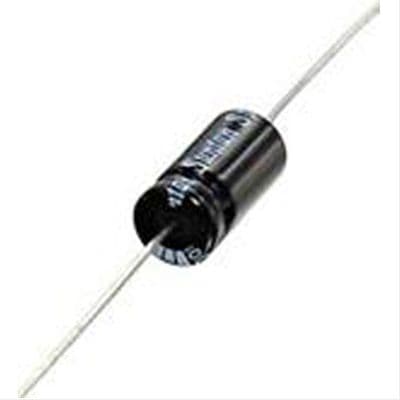

Product Images
