Axial aluminum electrolytic capacitor, 10µF capacitance, 63V DC rated voltage, 20% tolerance. Features 2500 hours life at 85°C, 50mA ripple current, and 5.3µA leakage current. With 13Ω ESR and 5.5Ω impedance, this RoHS compliant component offers through-hole mounting with axial leads.
Voltage63V
Capacitance10uF
Voltage Rating63V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Vishay MAL202138109E3 technical specifications.
General
| Capacitance | 10uF |
| Construction | AXIAL |
| Diameter | 4.5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 13R |
| Height | 10mm |
| Impedance | 5.5R |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Leakage Current | 5.3uA |
| Length | 10mm |
| Life (Hours) | 2500Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 50mA |
| RoHS Compliant | Yes |
| Series | 021 ASM |
| Termination | Axial |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| Voltage Rating (AC) | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay MAL202138109E3 Datasheet
Download the complete datasheet for Vishay MAL202138109E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

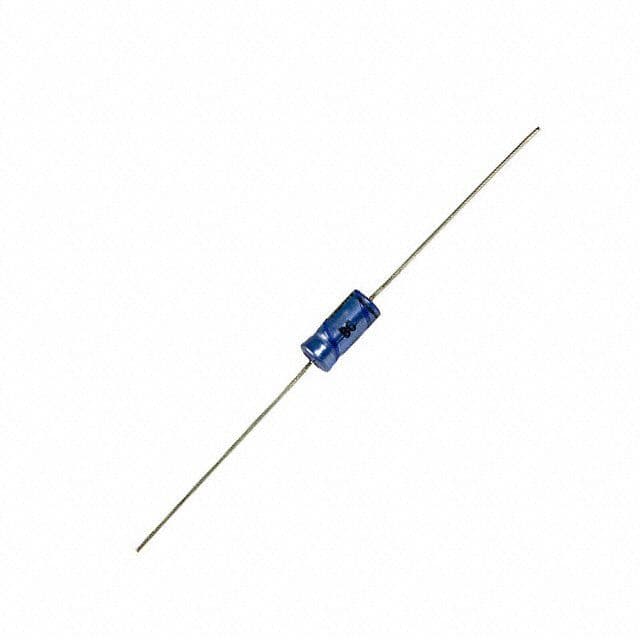

Product Images
