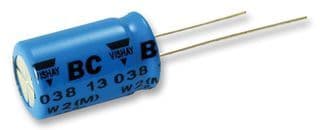

Standard aluminum electrolytic capacitor, 100µF capacitance, 25V voltage rating, and 20% tolerance. Features a radial package with a 6.3mm diameter and 11mm height, a 2.5mm lead pitch, and 0.5mm lead diameter. Offers a ripple current of 190mA, leakage current of 25µA, and a lifespan of 2500 hours at 85°C. Designed for through-hole PCB mounting, this RoHS compliant component operates from -40°C to 85°C.
PackageRadial
Voltage25V
Capacitance100uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Vishay MAL203856101E3 technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| Height | 11mm |
| Height - Seated (Max) | 0.492inch |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Leakage Current | 25uA |
| Life (Hours) | 2500Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 10000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 190mA |
| RoHS Compliant | Yes |
| Series | 038 RSU |
| Termination | Through Hole |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| Voltage Rating (AC) | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay MAL203856101E3 Datasheet
Download the complete datasheet for Vishay MAL203856101E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
